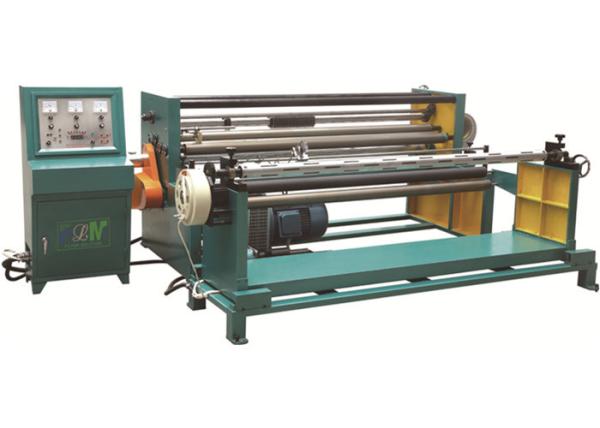

Mulfonction Best Quality PLF-1200N Full-Auto Photoelectric Paper Trimming Machine
Full-Auto Photoelectric Paper Trimming Machine Filter Cutting Machine Features
1 Adjust the round blades distance to meet the different cutting specifications.
2 The cutting speed is steep less regulated by motor.
3 The coiling speed synchronizes with cutting speed through the magnetic powder clutch, meanwhile maintaining the appropriate tensile force.
4 Adjusting the magnetic brakes on the paper delivery coil to keep the certain tightness between papers.

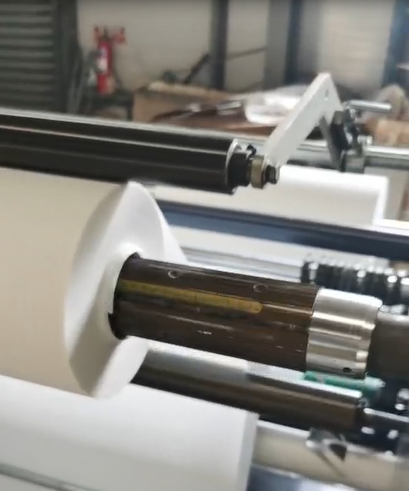

5 Both the paper delivery coil and the paper recede coil use the air bulking axis, to avoid the paper bobbin skidding and easy operation.
6 The waste trimming paper can be blown out through the action of the air-blower.
7 This machine has the automatically meter counting and reverting system.
8 This machine equips the photoelectric trimming device to make the paper cut much more precisely.
Full-Auto Photoelectric Paper Trimming Machine Filter Cutting Machine Introduction
This machine is specially designed and used for cutting the filter paper and the non-woven of the panel air filter, cabin filter and fuel filter.
The cutting machine can be made according to customers’ specifications.
Filter Paper Bursting Strength Testier Oil Filter Making Machine Photo
| | Product Name | PLF-1200N | | Width | 1300C type | | Cutting Thickness | 20–300 g/m2 (depending on different raw materials) | | Max. Diameter of Raw Material Unwindin | φ800 mm | | Max. Diameter of Raw Material Rewinding | φ800 mm | | Max. Width of Slitting Material | 1300 mm | | Winding Inflatable Shaft | φ74 mm | | Number of Rewinding Shafts at the Same Time | 2 (double shaft rewinding) | | Deviation Correction Accuracy | ±0.5 mm | | Slitting Accuracy | ±0.5 mm | | Speed | 10–200 m/min | | Total Power | 5 W | | Body Color | gray cover white (other colors are optional) | | Use automatic photoelectric correction | according to different raw materials and customer specific requirements | - This machine uses a DC motor to keep it running smoothly during acceleration; (frequency conversion speed regulation can also be used)
- Automatic meter counting, alarm and other functions;
- The rewinding adopts A air shaft structure, which is convenient for loading and unloading;
- The unwinding adopts the photoelectric automatic correction system to make irregular materials can be slit normally
- Automatic discharge device for flat knife slitting waste edge
- Pneumatic shaft feeding, 3 inches

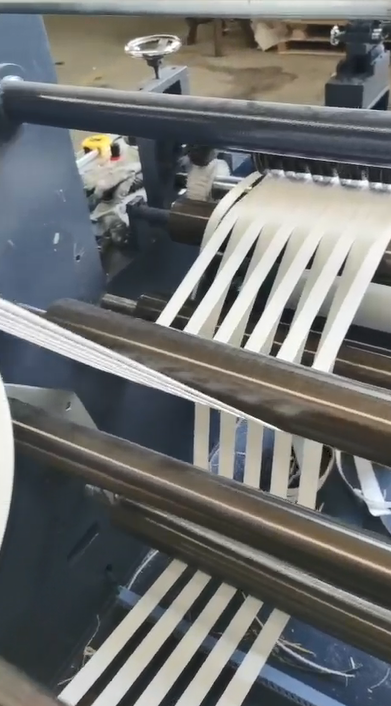

This machine is suitable for slitting various roll materials such as BOPP, PET, CPP, CPE, PVC, etc. During the production process, the materials are slit and rewinded according to different need.
|
Machine characteristics
Operating procedures
Machine packing
