PLCZ55-1050-II Knife Paper Rotary Pleating Machine 8-55mm Pleating Height Full Auto

Product Categories

Hebei Leiman Filter Material Co.,Ltd

Contact Now

Name: PLCZ551050II Knife Paper Rotary Pleating Machine 855mm Pleating Height Full Auto
Brand: LeiMan
Price: 10500 USD

Brand Name : LeiMan

Model Number : PLCZ55-1050-II

Place of Origin : China

MOQ : 1 SET

Price : USD10500/SET

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 30 Set Per Month

Delivery Time : 20-25 work days

Packaging Details : Wood Case Export Package

Product Name : Knife Paper Pleating Machine

Speed : 0.5–12 m/min (adjustable)

Min. Paper Width : 32 mm

Max. Paper Width : 1100 mm

Adjustable Marking Distance : 8–55 mm

Heating Power : 7.5 kW

Operating Temperature : Up to 200 C

Working Air Pressure : 0.6 MPa

Contact Now

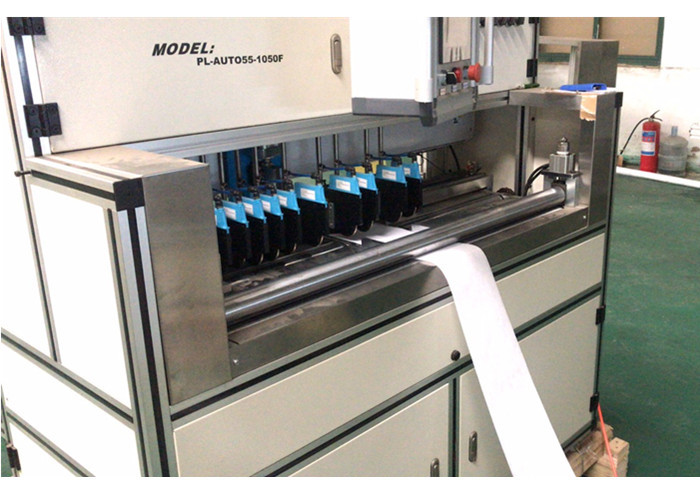

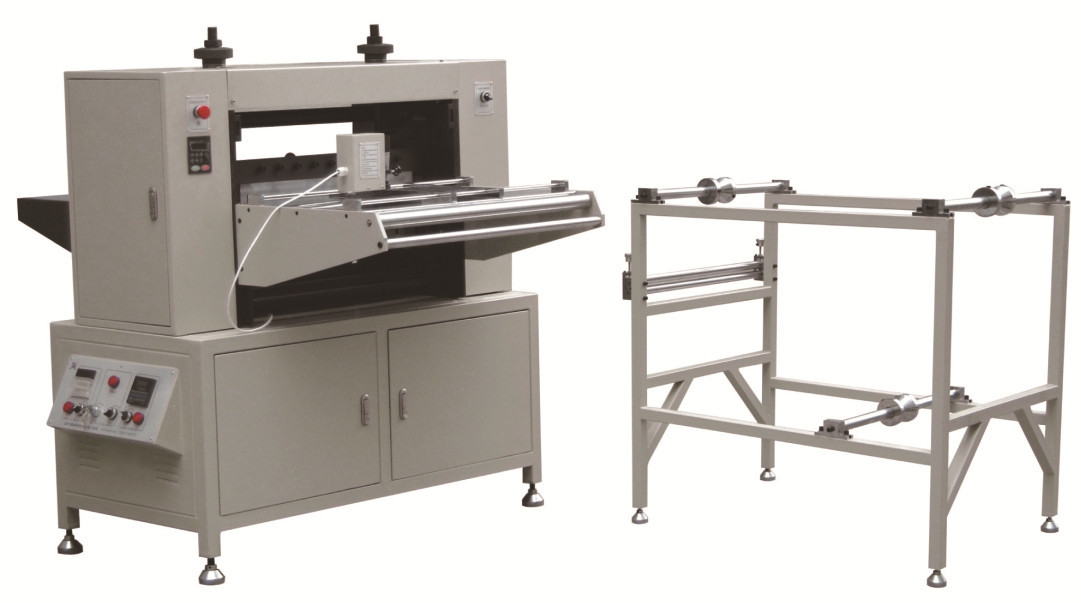

8-55mm Pleating Height PLCZ55-1050-II Full-Auto Knife Paper Pleating Machine

Full-Auto Knife Paper Pleating Machine is mainly used to pleat the filter paper

The filter paper part is the main part of the filters

Product Name	Rotary Filter Paper Pleating Machine
Speed	0.5–12 m/min (adjustable)
Min. Paper Width	32 mm
Max. Paper Width	1100 mm
Min. Pleat Height	8 mm
Max. Pleat Height	55 mm

The pre-slitting machine can accurately and freely adjust the cutting dimensions through frequency converter speed regulation and cylinder blades in different filter sizes. it is simple operated but smooth and effective. After slitting the paper the conveyor for feeding the filter paper runs in synchronism with the marking machine by equipping the monitoring system.
The marking machine can mark in different pleat sizes, the marking distance can be set freely by the computer screen, and accurately marking distance will be appeared with the step motor loading.
The pleater uses upper and lower blades to alternately finish the folding, and then different pleating heights are acquired evenly and accurately by automatically adjusting the blades distance.
After marking, the filter paper will be pleated and pre-heated.
The machine is also suitable for folding the iron wire fabric and non-woven fabric of the hydraulic filter , even the multilayer folding.
